The design concept is based on absolute reliability and flexibility. This range incorporates the latest technological advances and components which are designed for long service life to offer operators total piece of mind. The availability of a wide range of different version and options makes them suitable for almost all applications. This ranges from additional regulated speed models, receiver mounted versions including refrigerant dryer (Airstation) and integrated heat recovery option.

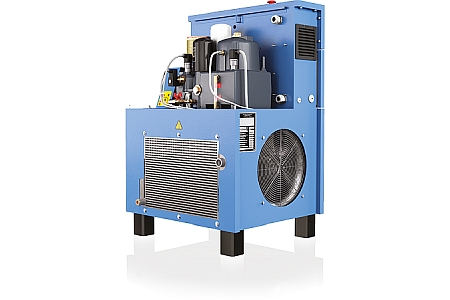

L07 Lubricated Rotary Screw Compressor
The advanced design of the high efficiency airend allows operation at low rotational speeds, and consequently lowers the energy costs. The innovative integrated design, including oil separation, oil filter and thermostatic bypass valve, reduces the number of external hoses and components offering excellent reliability. The compressors are equipped with an energy saving IE 3 electric motor with reduced CO2 emissions. As the compressors offer low noise levels they can be placed at the point of use.

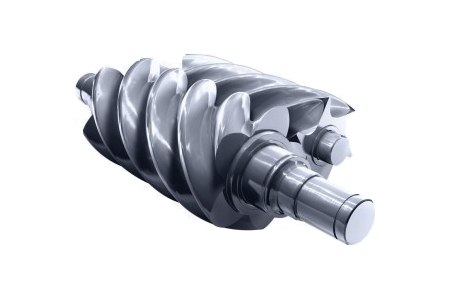

Screw Element

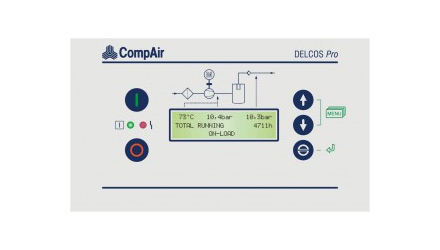

Delcos Pro Controller
The control system ensures reliable operation and protects the investment by continuously monitoring operational parameters. The Delcos Pro also has the capability to have programmable inputs and outputs, control additional equipment as well as providing the all relevant information in clear readable text:
The pressure setting can be easily adjusted via the controller.

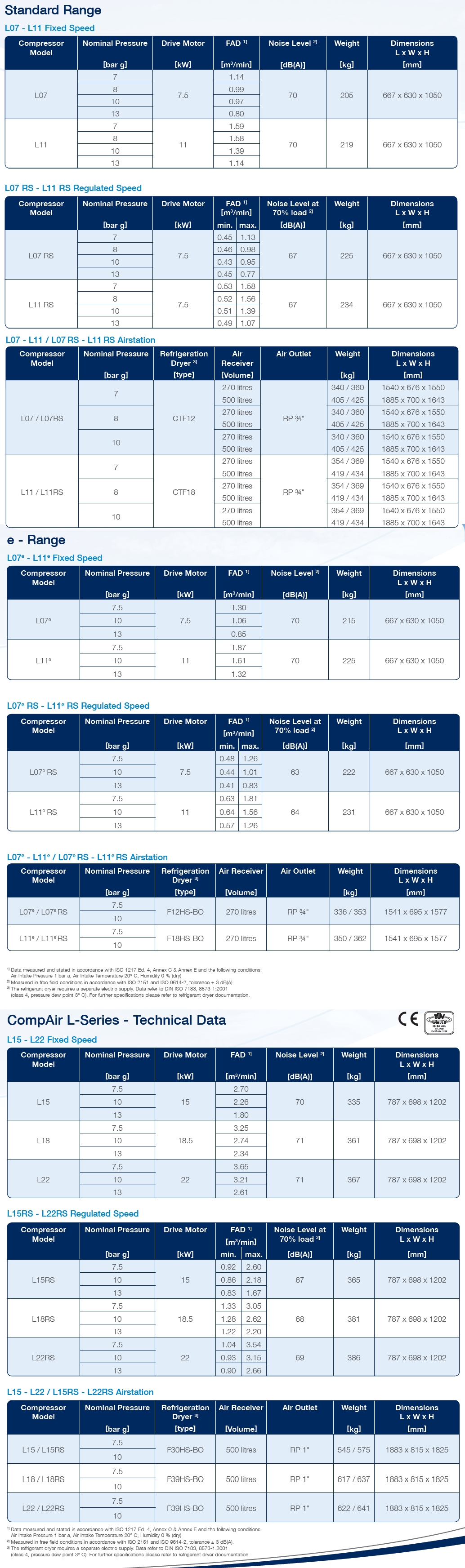

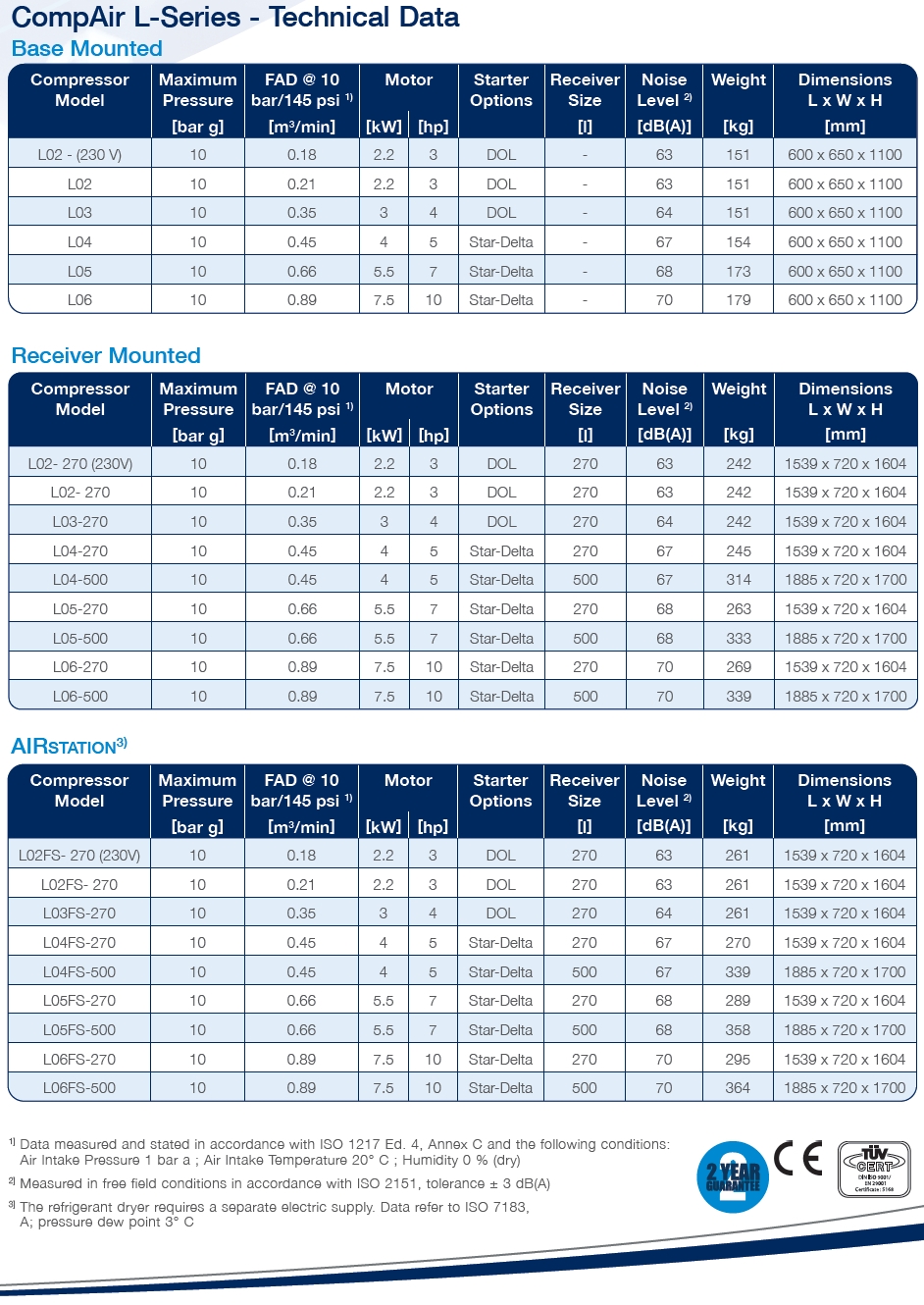

Fixed speed rotary screw compressor specifications
