Medical Oxygen Generators

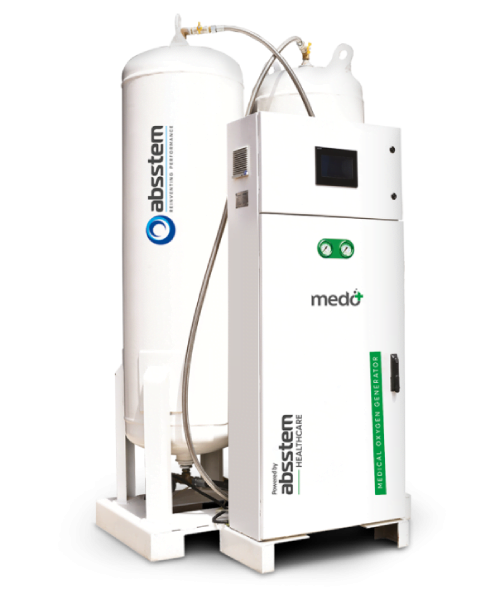

MedO, the smart and efficient oxygen generator, aims to help medical facilities produce their own medical-grade oxygen onsite. This eliminates logistical challenges and saves them from stocking up pre-filled cylinders. With a series of air filters and a special bacterial filter, MedO produces oxygen within the recommended range of purity (93% ± 3%) even when the intake contains a high concentration of pollutants.

  • Consistent Supply
  • Fully Automated
  • Live System Monitoring
  • Plug N Play
  • Easy Installation
  • Lowest* Maintenance Cost
  • Constant Service & Support
  • 10 Years Warranty Plans
  • Inlet air as per ISO 8573.1:2010 - Class 1.4.1
  • Medical grade conforming to US, EU, UK and Indian pharmacopoeia
  • Pressure up to 200 kg/cm2g is available on demand through oxygen compressors
  • Sound Level of 65 dB from a distance of 1 meter.
  • Oxygen flow is 2.5 to 250 NM3/hr
  • O2 Delivery Pressure is 5.3 barg
  • Oxygen dew point is -500C
  • USB Storage is available to store parameters values.
  • CE certified electrical & electronics with 24 VDC operating Voltage.
  • All tanks are fabricated per ASME standards.
  • All tanks have corrosion-resistant internal environment.
  • ISO 9001 2015: Manufacturing is in accordance with certified QMS Quality Management System.
  • Working temperature -50C to 450C
  • Power Supply is 230 VAC, 50/60 Hz
